Next Generation Cat® medium wheel loaders are built with new technology options to advance safety and help customers work faster and with greater accuracy.
Integrated for optimum performance, Cat medium wheel loaders can be easily upgraded with new technology options as work demands.
“Our new optional Collision Warning system with Motion Inhibit includes Object Detection, People Detection and Motion Inhibit as a package,” said Frank Stadelmann, Caterpillar global product application specialist for medium wheel loaders.
“The package improves safe operation by alerting operators and inhibiting loader motion in the instant a machine transitions from an inactive to an active state.
“The new Cat Payload for Trade1 option builds on our Advanced Payload Scale system that electronically captures weight and other data from the loader, now in a certified way, and can send it to the office or directly via email.”
Operating safety
Starting with a foundation of the standard HD rear camera with an integrated touchscreen, Cat medium wheel loaders offer a progressive building block of embedded new technology options, including the Multiview (360°) Vision System, Rear Object Detection, and now, Collision Warning System with Motion Inhibit.

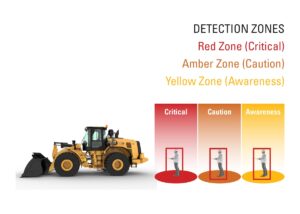

The new system uses radar and vision sensors to detect hazard potential, alert operators, and inhibit motion when initiating reverse motion from a stationary position. Targeting collision potentials that emerge from behind the loader, the Collision Warning System leverages both smart camera and radar technology to give audible and visual alerts to help operators see, mitigate and manage hazards that might otherwise go unnoticed. The system’s three colour zones – yellow for awareness, amber for caution and red for critical – approximate the distance of the object to the anticipated path of the loader.

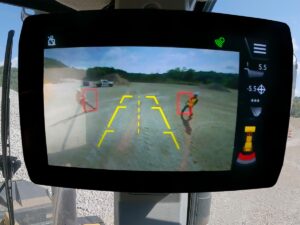

The embedded Motion Inhibit feature prevents direct reverse-gear engagement when shifting from neutral and automatically applies the brake when the system detects an object or worker in the critical alarm zone behind the loader. When this occurs, the operator is alerted by an on-screen notification. The loader will reverse once the operator shifts back into neutral and steers to clear the detection.
People Detection utilises the smart camera to alert the operator when a person is detected behind the loader. Three levels of alerts dynamically adjust based on the person’s proximity to the machine, and the system highlights people in red bounding boxes on the in-cab monitor to distinguish and manage the potential risk.
Payload accuracy
Standard Cat Payload delivers precise bucket load information with on-the-go weighing to help prevent overloading or underloading. Upgrading to the Advanced Payload system expands automation features and capabilities, including automatic tip-off assist for the final bucket process to help meet target payloads. A new multitask mode within Advanced Payload tracks two loading processes simultaneously, while split mode allows for loading multiple bodies, tracking individual targets and tabulating grand totals of each load. Add Dispatch for Loading2 to integrate the loader into the scale house process.
The Cat Payload for Trade1 option for Cat Advanced Payload allows you to integrate scale data directly into your business processes. It is type-approved by the International Organization of Legal Metrology and retains all the features of the standard version of Cat Advanced Payload.
Efficiency building blocks
From material handling and truck loading to general construction and stockpiling, the integrated Cat medium wheel loader new technology options help operators of all skill levels work more efficiently and productively with less fatigue. These new technologies increase the machine’s capabilities by building on a number of standard and optional features already available, including:
• Auto Set Tires – helps operators with proper digging technique and improves bucket fill factors;
• Autodig – performs a full dig cycle automatically for the operator upon detecting a dig condition;
• Programable Kickouts – automates repetitive tilt, lower, and lift functions to reduce operator fatigue;
• Machine Speed Limit – offers customers two limit options to control the loader’s top speed
• Tire Pressure Monitoring System – helps operators to maintain recommended tyre pressure;
• Remote Flash – enables downloaded software updates to be initiated from the on-board display; and
• Remote Troubleshoot – remotely connects the loader to the dealer’s service department to diagnose fault codes.
Removing the operator from the machine, the recently announced Command for Loading technology offers remote control of Next Generation medium wheel loaders. An ergonomic Command console enables line-of-sight remote control of basic machine functions such as startup/shutdown, bucket rack/dump, and lift/lower. For non-line-of-sight operation, the Command Station can connect to multiple machines and allow the user to operate one machine at a time, either on-site or from kilometres away.
More information on the new technology upgrades for Cat wheel loaders can be found by contacting a Cat dealer or visiting cat.com.
¹ Available in Australia and New Zealand. Country certifications vary. Contact your Cat dealer for more information
² Subscription and compatible scale house software are required
