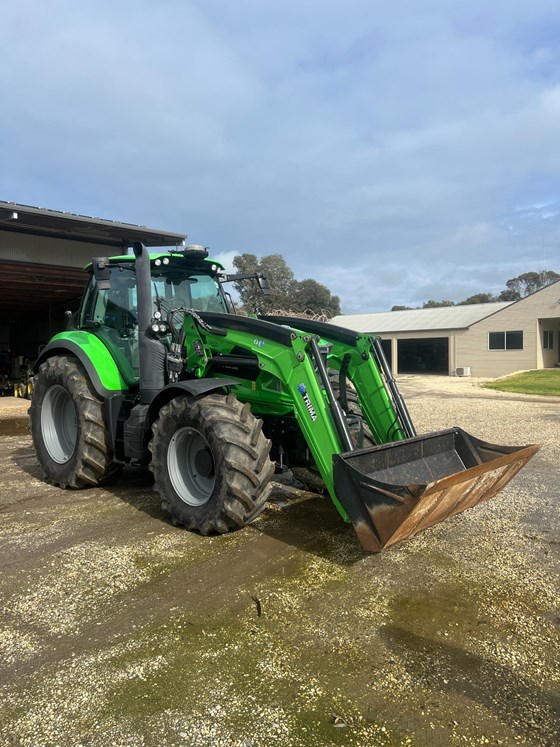

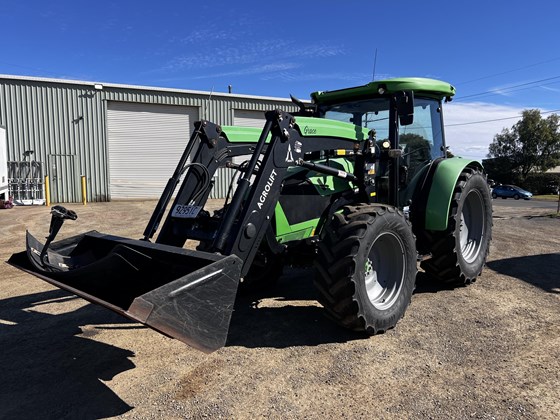

DEUTZ-FAHR 5125G HEAVY DUTY
Features
Title | DEUTZ-FAHR 5125G HEAVY DUTY |
Type | Tractors |
Sub Type | Tractors |
Make | DEUTZ-FAHR |
Model | 5125G HEAVY DUTY |
Sale Price | $141,790 |
Listing Type | New |
Stock Number | S108 |
RefCode | TA1123590 |
Drive Type | 4WD |
FEL | YES |
Number Cylinders/cc | 3849cc |
Rated Engine Power - hp | 126 |
Usage Hours | 0 |
Description
Engine
FARMotion Tier 4i Diesel Engine
4 Cyl/3849cc Turbocharged/Intercooled
Electronically Controlled
Emission Control by DOC Unit
Liquid/Oil Cooled with Fixed Fan
High Pressure Diesel Injection/Common Rail
126 Max Hp @ 2200 rpm (2000/25/CE)
6 Hp Power Boost
Torque 500 Nm @1600 rpm
Engine Speed Programming × 2
Powercore Air Filter with Dust Ejectors
Side Vertical Exhaust
Fuel Tank 150 litres
Transmission
60/60 Forward/Reverse Gears
Sense Clutch Wet Clutch Powershuttle
Shuttle Modulation with 5 Settings
5 Speeds / 4 Ranges / 3 Stage Powershift
Speed Matching
Comfort Clutch
Stop and Go Function
Front Wheel Assist Push Button
4 Wheel Independent Braking
100% Front & Rear Diff Lock - Push Button
40 km/h Road speed @ Super Economy RPM
PTO
Independent Wet Multidisc Clutch
4 Speed PTO 540/540E- 1000/1000E
Push Button Control in Cab/Rear Fender
Auto PTO
Interchangeable PTO Spline Function
1 3/8 6 Spline PTO Shaft
Wheel Equipment & Miscellaneous
Fixed Fully Welded Radial Wheel Equipment
440/65R28 Front -540/65R38 Rear Tyres
Front Weight Frame
12v elec. socket and 7-pin ISO 11786 plug
Deutz-Fahr STOLL Loader Ready includes;
Subframe
Hydraulic Kit
Joystick with Powershift buttons
Electrical switches for loader operation
Operator Environment
D2L Class Air Conditioned Cab
Hydro Silent Block Cabin Suspension
Super Deluxe Air Seat
Tilt and Telescopic Steering Wheel
SDD Rapid Steering Circuit
Hi Visibility Polycarbonate FOPS Roof
INFOCENTER II Digital Display
MP3 Radio Player with Twin Speakers
Telescopic Mirrors
4 Cabin Work Lights
2 Bonnet Front Work Lights
2 Duplicate Headlights on Cab Post
2 Work lights on Cab Post
Rotating Beacon
Hydraulics/Linkage/Drawbar
90 L/min On Demand Hydraulic System
Separate 40L/min Steering Pump
3 Sets of Remotes - 3 Detent / 3 Float
Flow Control on All Valves
Electronic Hitch with Position & Draft Control
Free flow Return Line
External Raise & lower on Rear Fenders
Cat 2 Hook ends-telescopic stabilizers
5410 kg lift capacity with Assistor Rams
Swinging Drawbar CAT A
Weights & Dimensions
Wheelbase 2400 mm
Length 4314 mm
Total Height 2730mm
Total Weight 4400kg
